ATTACHING THE i4xx CARD CAGE TO A WALL
PRODUCT LIST > i4xx >

Overview

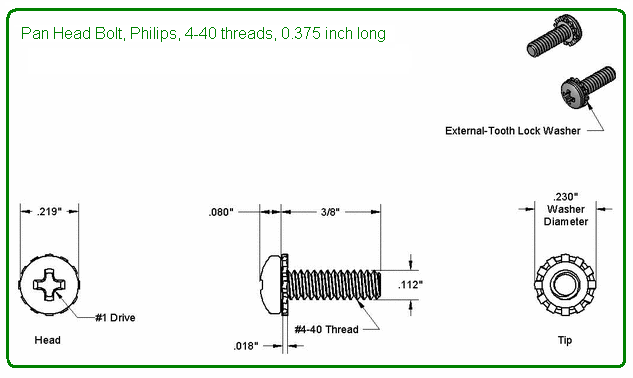

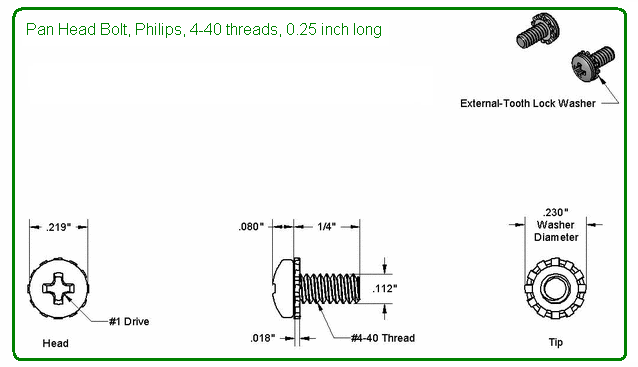

If one has access to both sides of a wall, they can easily bolt the i4xx Card Cage to that wall via extra bolts included with the #iNet-400 product. These mate with pre-drilled and pre-threaded holes in the i4xx Card Cage bottom, back and top surfaces. This assumes you have access to both sides of the wall. If you do not, then consider the i530 Wall & DIN mounting brackets, which can be used to affix a card cage to a DIN rail or to a wall in which you only have access to the i4xx side of that wall. The i4xx Card Cage ships with four extra 4-40 pan head 0.250" bolts and four extra 4-40 pan head 0.375" bolts to help with wall mounting.

i40x Mechanical Drawing

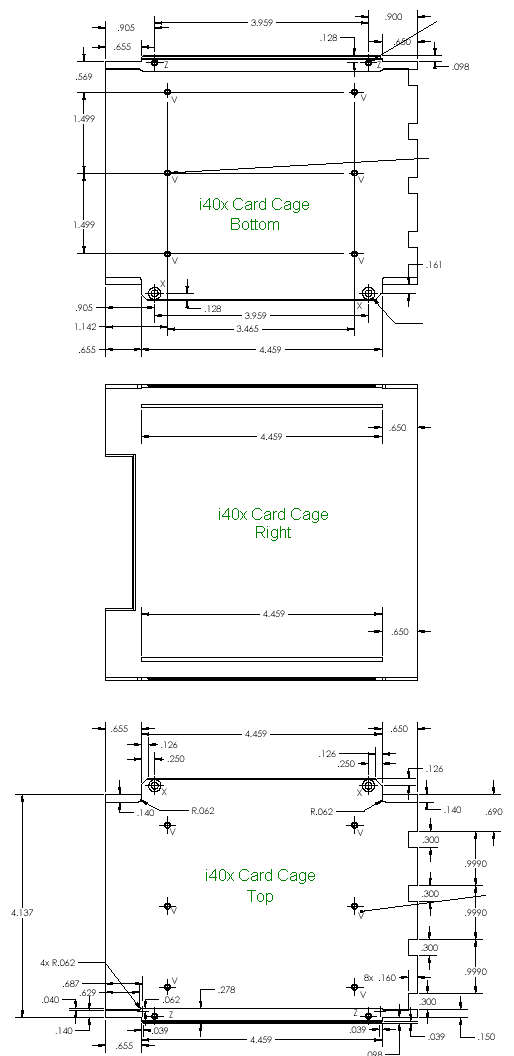

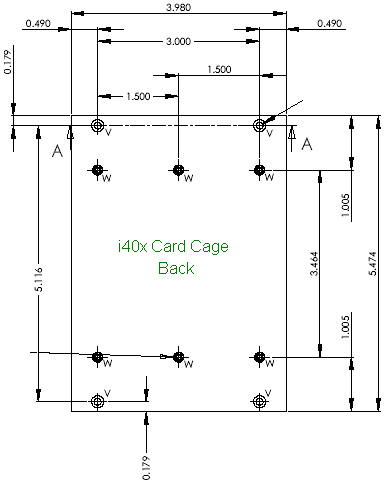

The illustrations below show the locations of pre-threaded 4-40 holes (Labeled "V" and "W") in the i4xx Card Cage top, bottom, and back surfaces.
