The i510 Wiring Box bolts to i60x/i4xx hardware, and provides the following features:

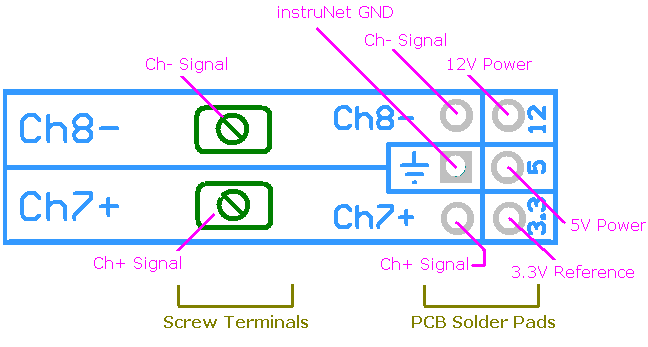

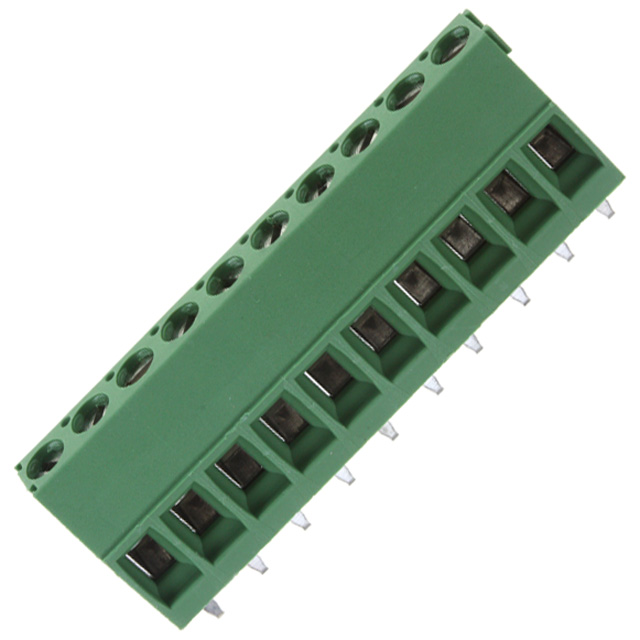

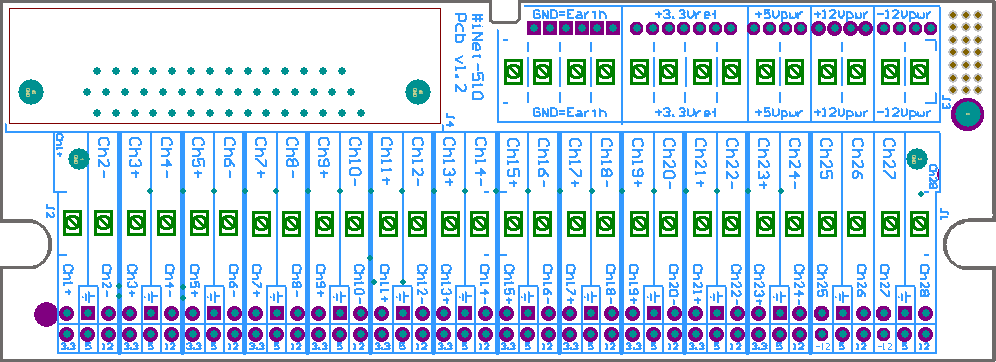

• Screw Terminals and pcb solder pads to which one can attach external signals to Hd44 connector
• Enclosure box for end user installed wires and shunt resistors
• Internal i51x CJC sensor enables the measurement of thermocouple temperature sensors

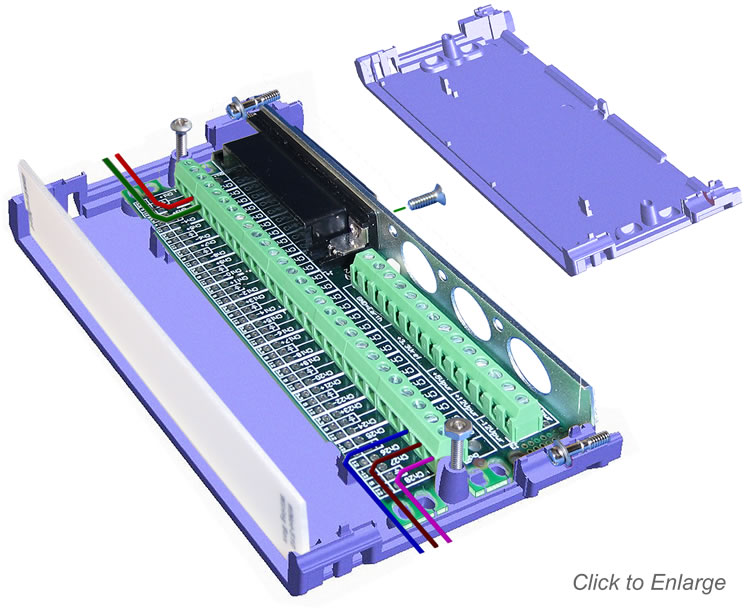

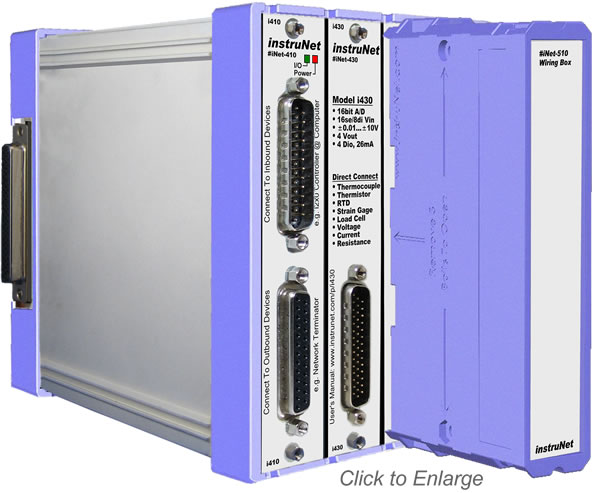

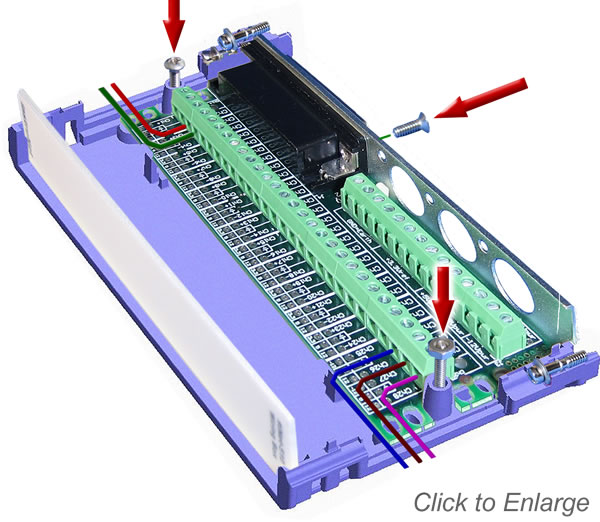

The picture to the right shows an open i510 with wires routed through both top and bottom windows. The i51x is of clamshell design with identical top and bottom plastic halves that mate via 3 bolts. Two captive 4-40 bolts secure the i51x to any i4xx card that has an Hd44 male connector. The i510 is 7 x 2.5 x 13 cm in size (2.7" x 1" x 5.3", d/w/h).
