Measurement Hardware

The following instruNet hardware provides digital input channels that can count events (i.e. pulses):

i200 Controller PCI Card


Event Counting with the iNet-200 PCI Card

The Model 200 (not 230) instruNet PCI Controller boards have 10 digital input/output channels, each of which can be used to count incoming >100μs pulses with a 64bit counter. For details on how to use the i200 counter/timer channels, click here; and for specifications, click here.

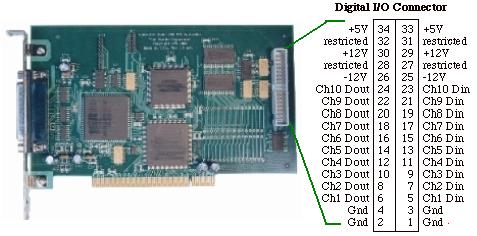

Wiring Diagram
